CUSTOM TRAILER

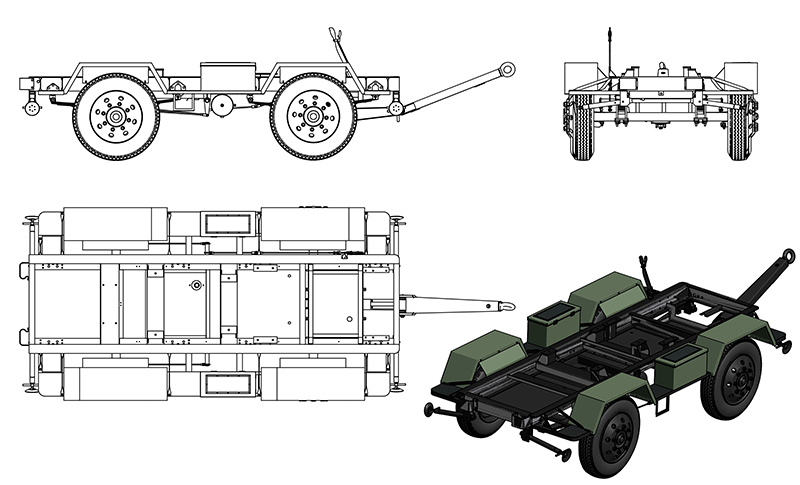

• • Military
• • Basic use
• • Customized by application

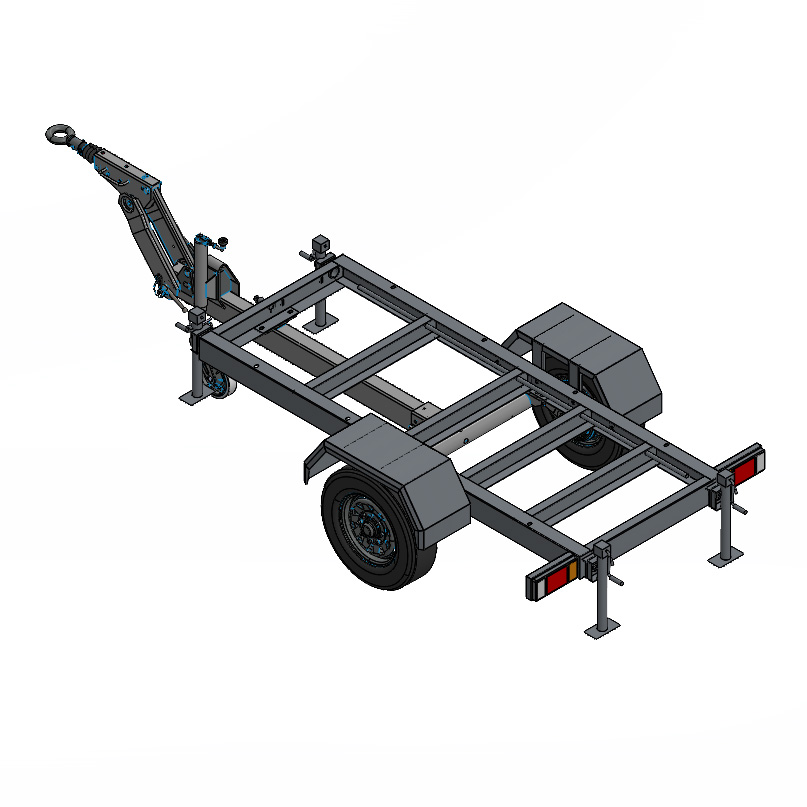

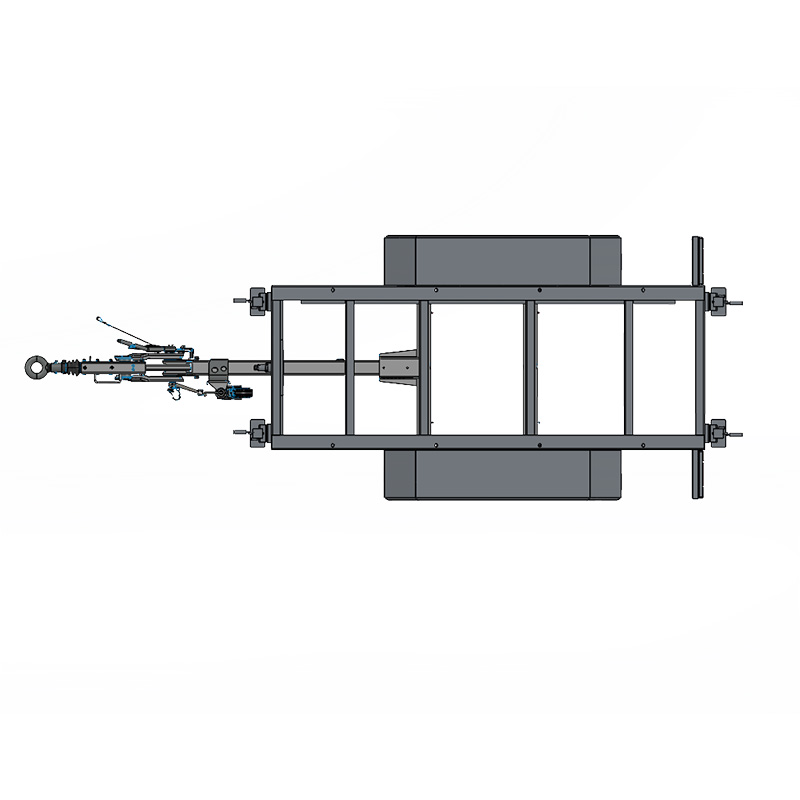

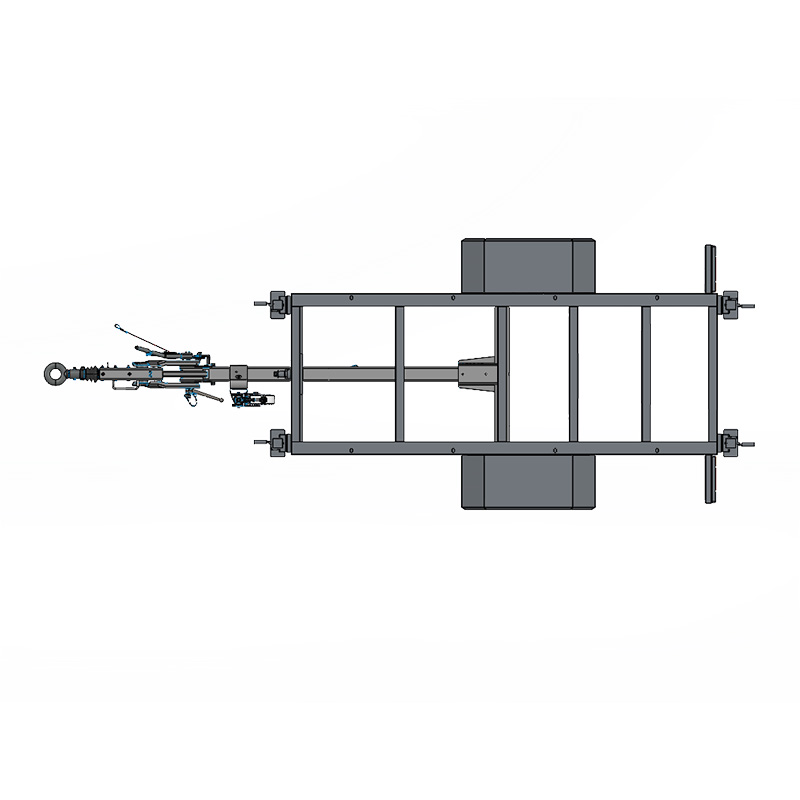

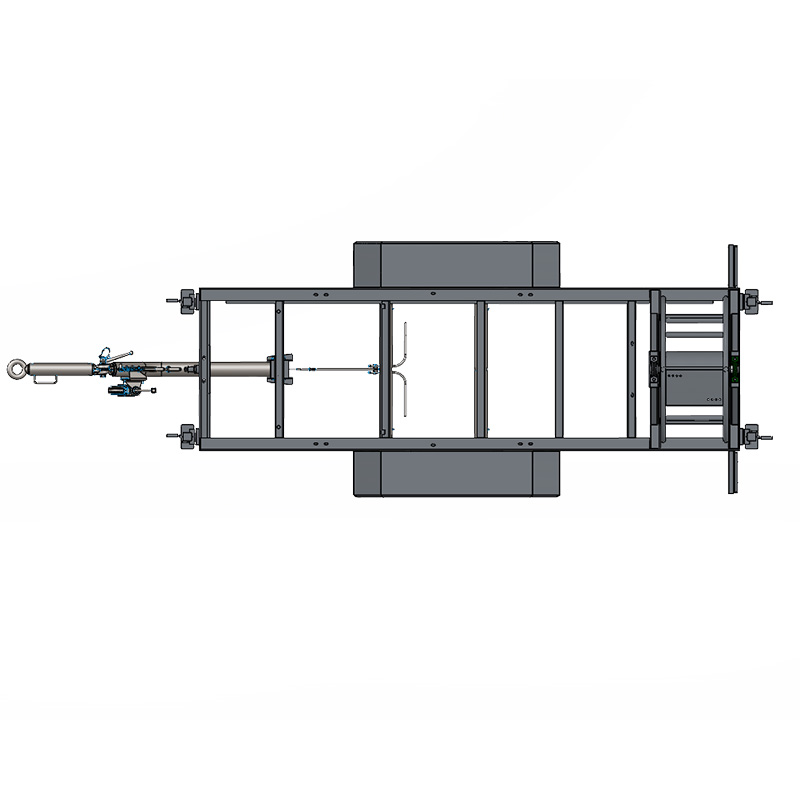

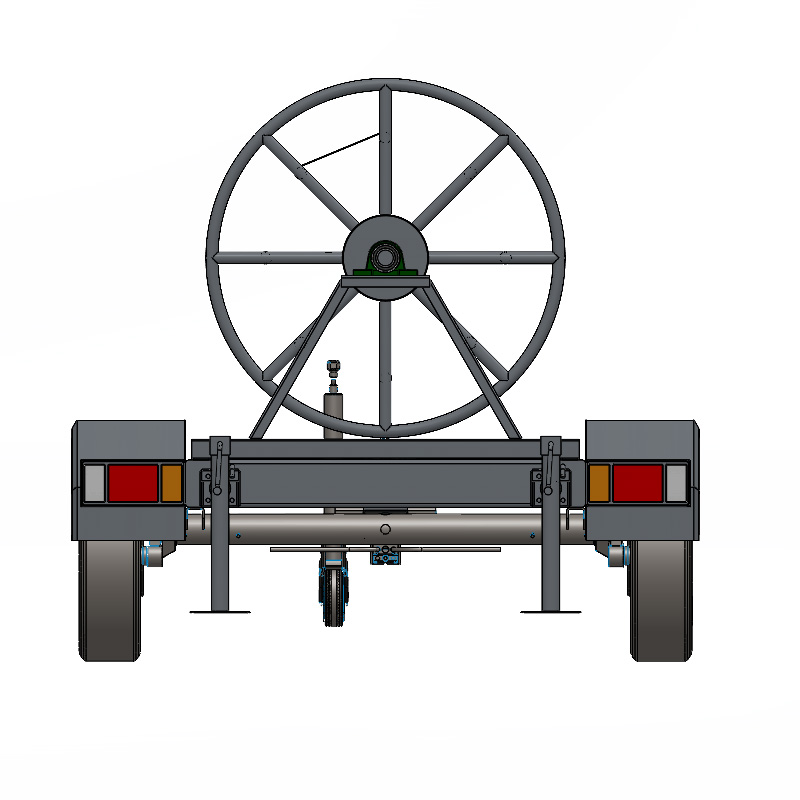

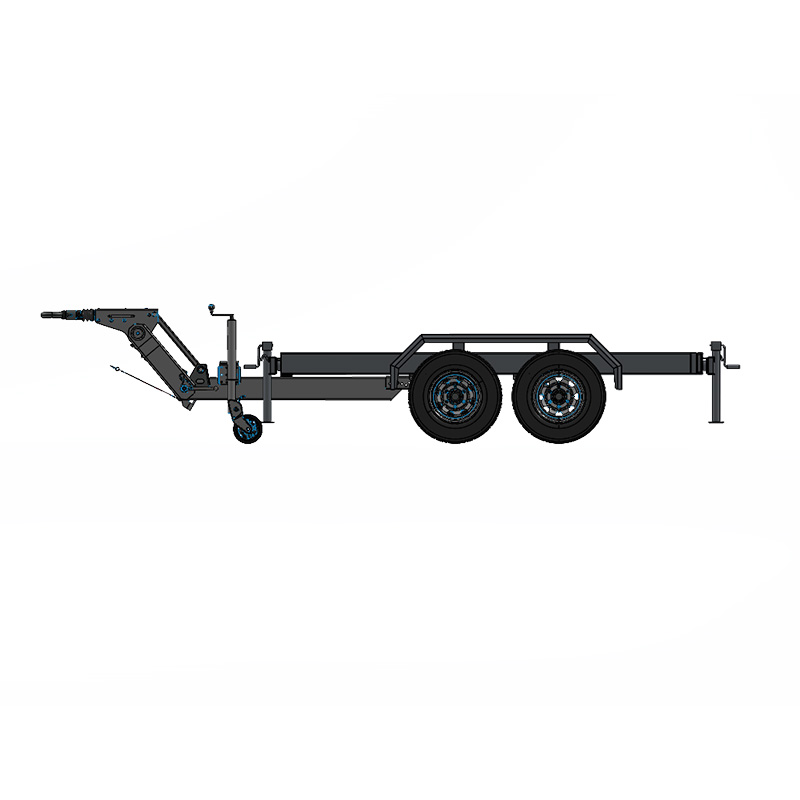

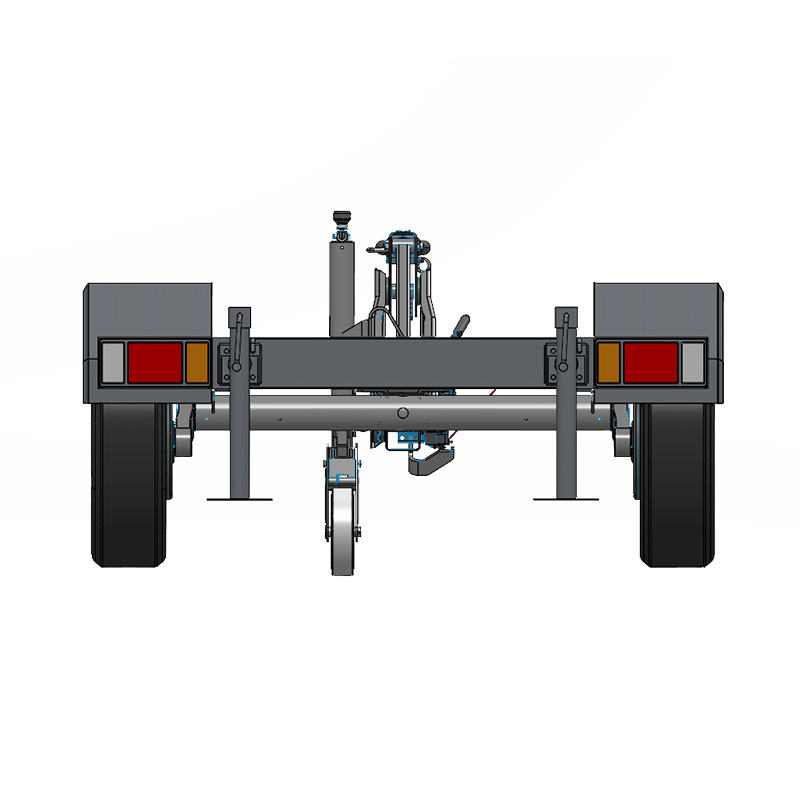

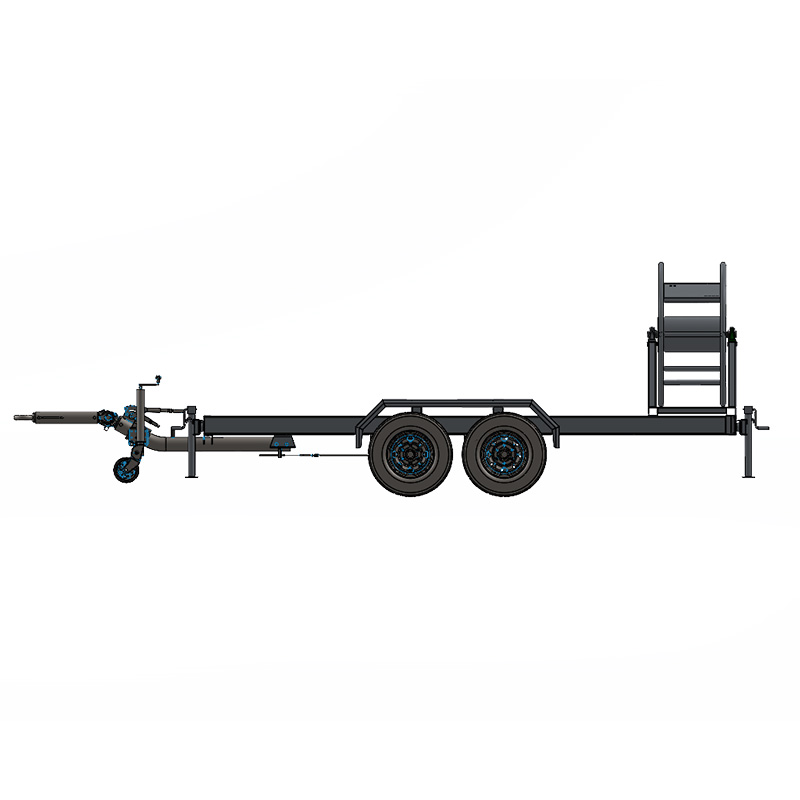

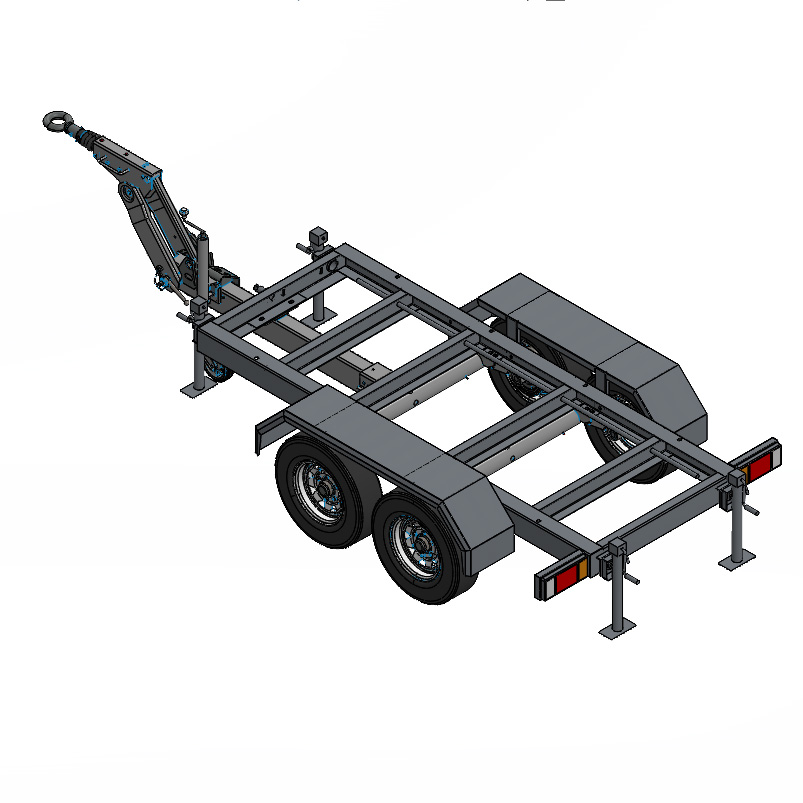

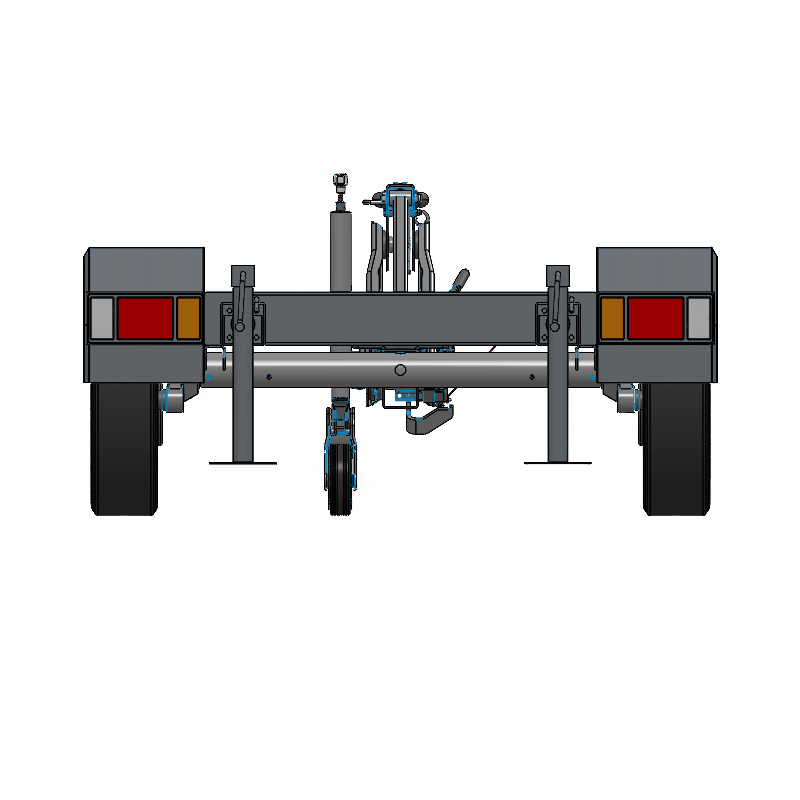

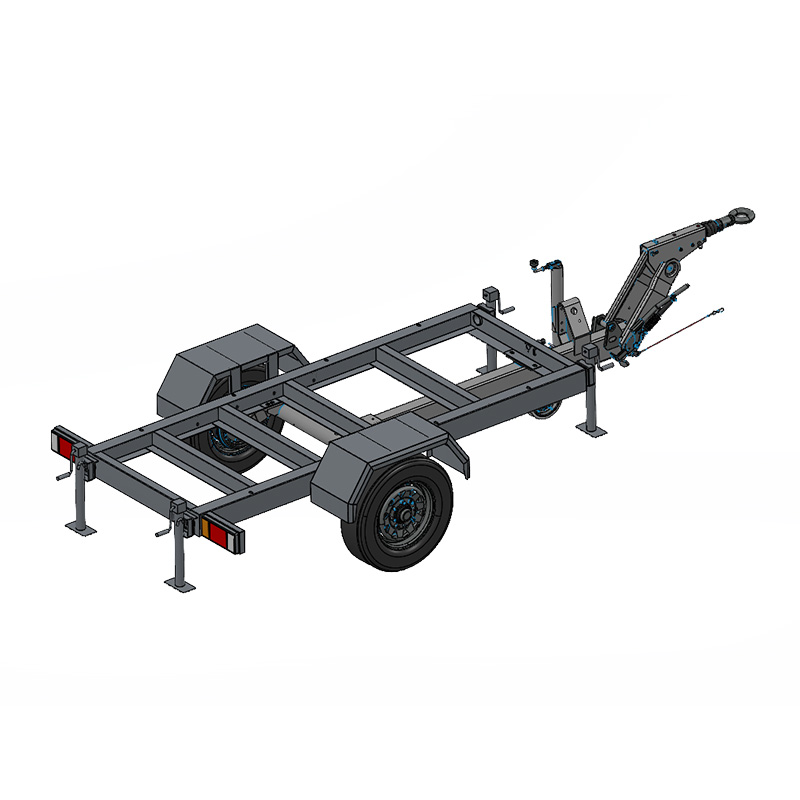

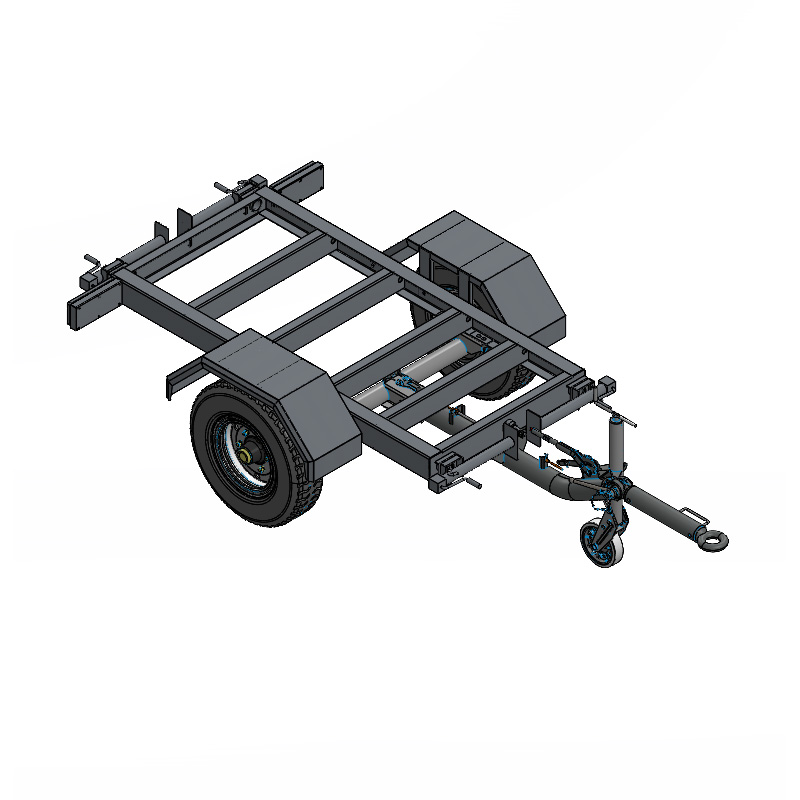

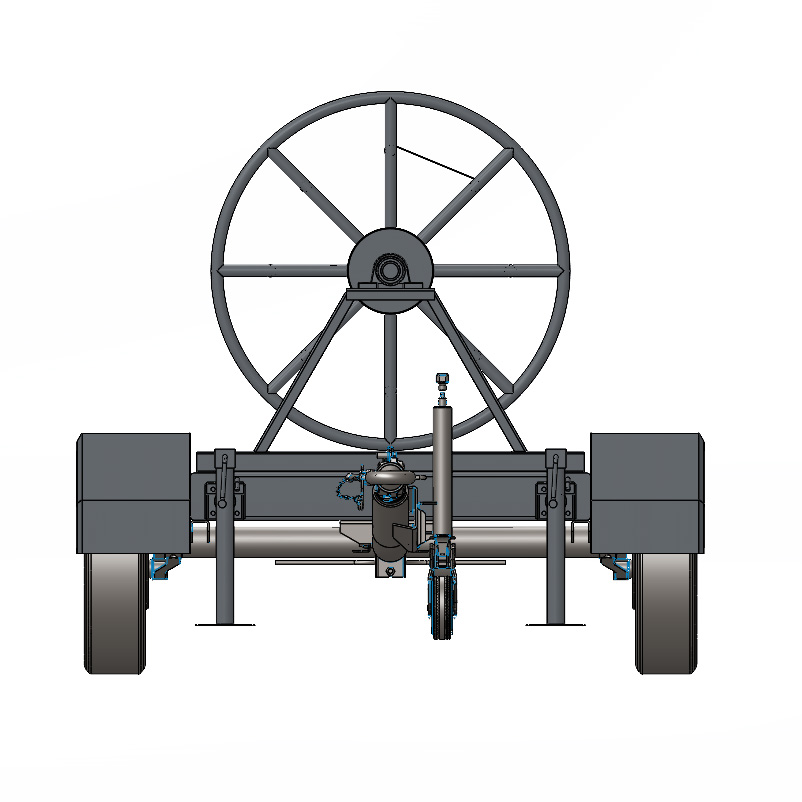

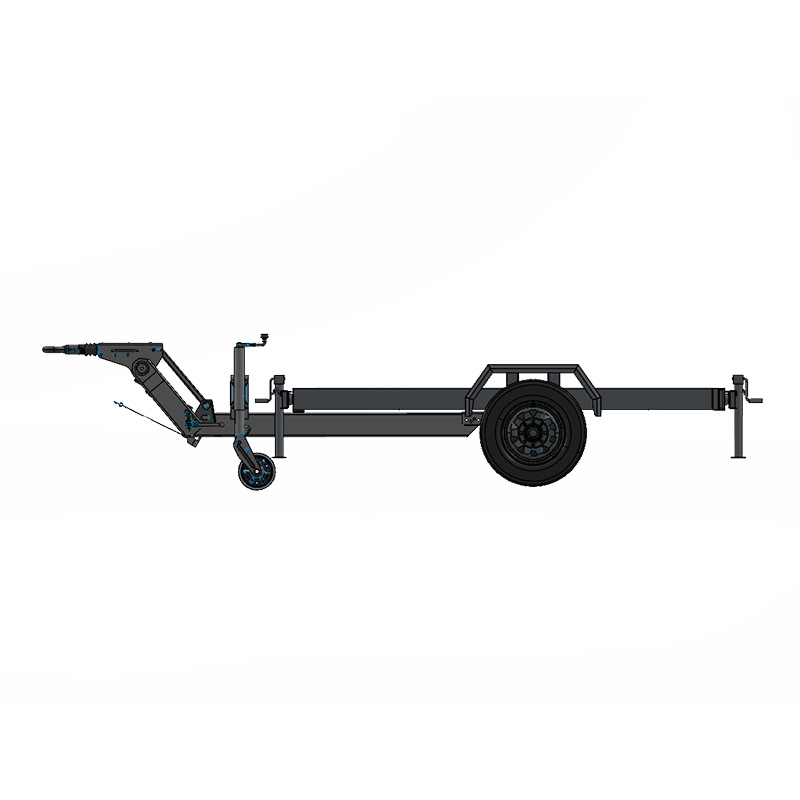

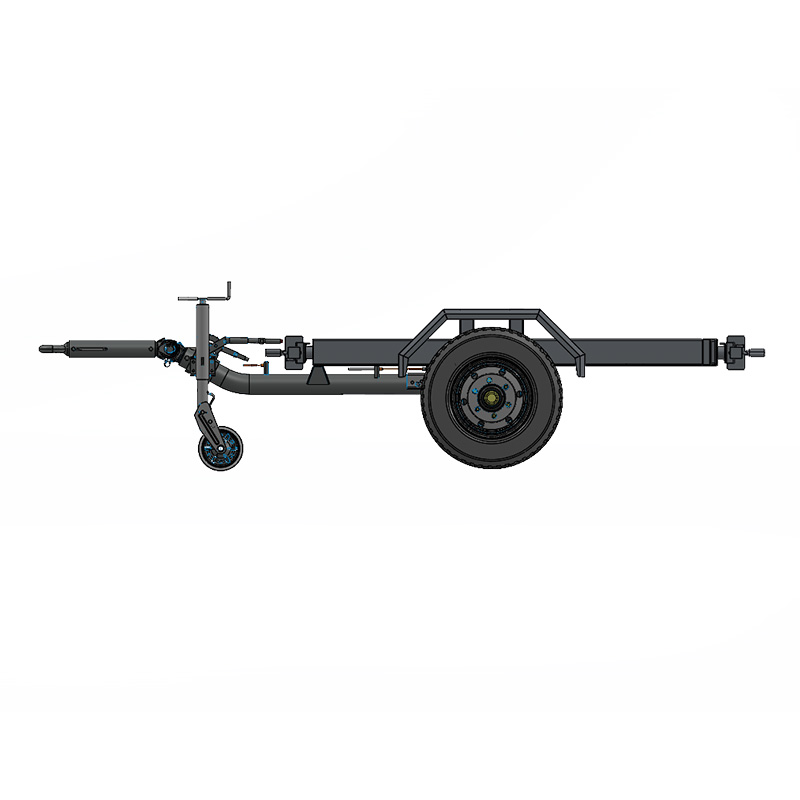

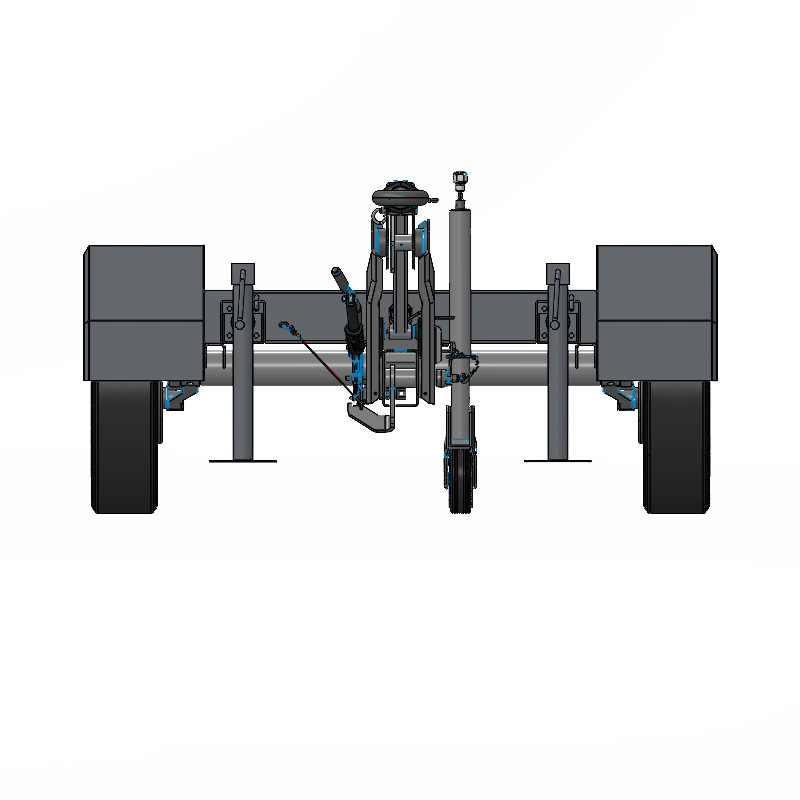

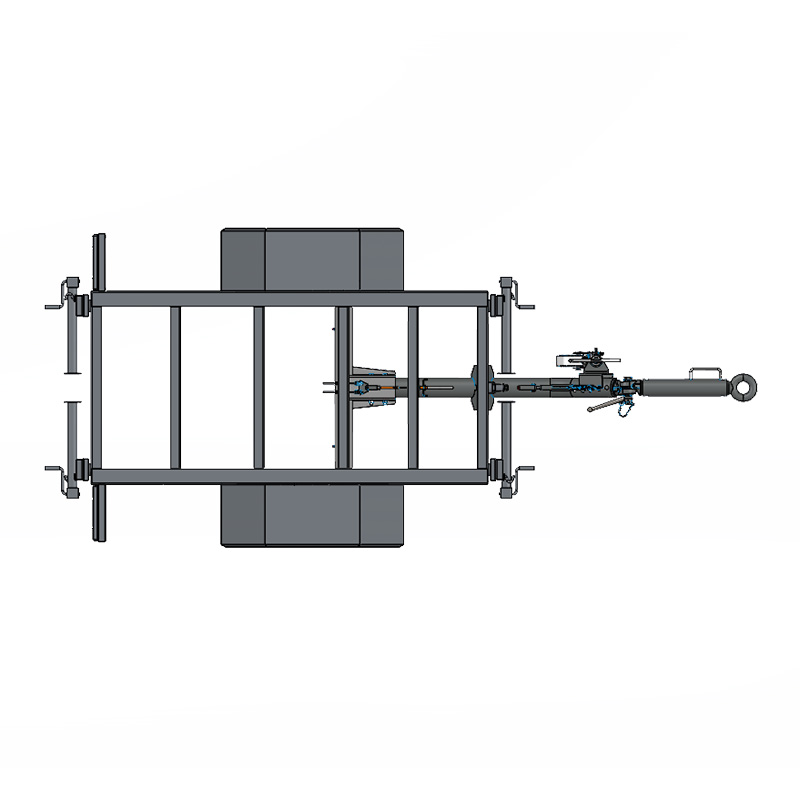

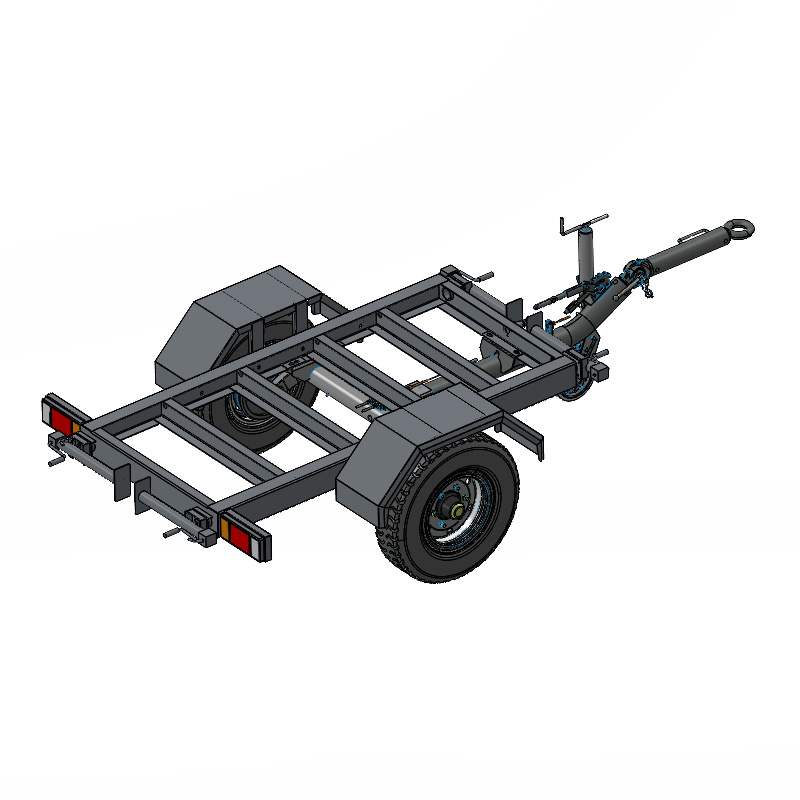

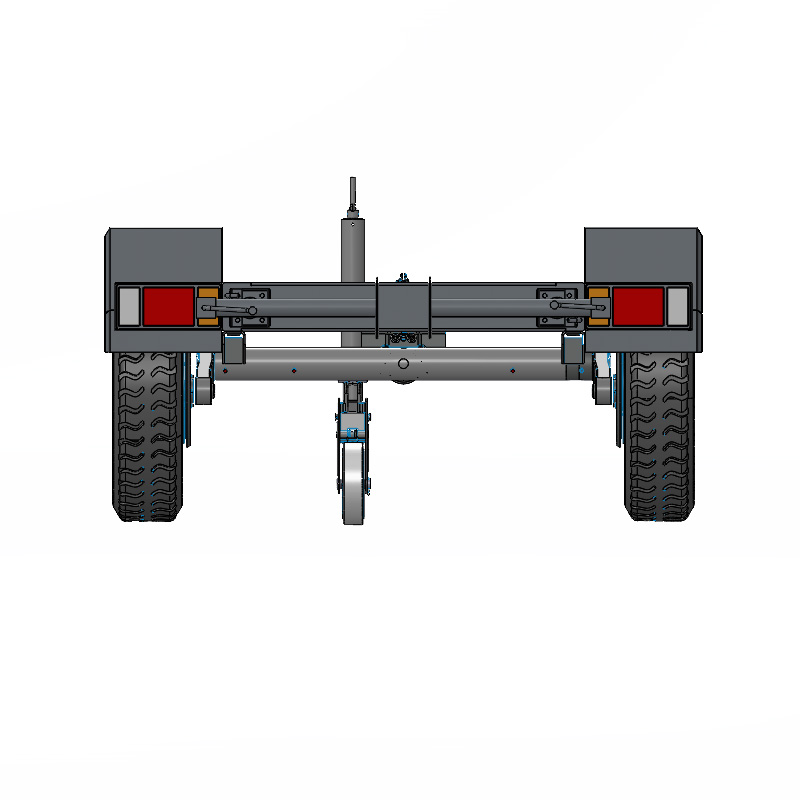

Uniwell designs and manufactures different types of industrial Trailers to fit Diesel generator set, Air compressors, Mobile lighting and so on for easy mobility. These trailers are available with 1, 2 or 3 axles，equipped with the Torque axle impact brake traction and Flat axle impact brake traction, they are suitable for moving on different road conditions to improve the safety of your equipment.

The trailers are usually shipped in loose components(CKD) for local assembly, this can offer significant savings on import duty, local tariffs and shipping costs.

These Trailer Chassis covers the weight capacity from 750kg to 8000kg:

• • Suitable for low speed((≤25km/h) : Trailer chassis with parking brake only
• • Suitable for high speed((≥60km/h) : Trailer chassis with inertia braking system or air braking system
• • Weight capacity (750kg~4000kg): Use central(Single or double) axle chassis
• • Weight capacity (2000kg~8000kg): Use four-wheel chassis by wheel steering or Axle steering
• • Suspension: Rubber torsion bar suspension, Metal torsion bar suspension, Plate spring suspension
• • Brake system: Mechanical, Hydraulic, Pneumatic braking system are adopted according to different working conditions
• • Wheels: ST225/75R15 load range D tires on white spoke 6-lug wheel; ST245/75R16 load range E tires on white spoke 8 lug wheel
• • All trailers include Front guide wheel, Front & Rear stabilizer jacks, Lighting package
